60L Akkumulatorblo Blading Maschinn

Model:KGB90AP

Fir KGB90ap, en Energiator-effizient 60l Akkumulatorbladschwäschmaschinn mat Duebelschicht mat Duebelschicht oder duebel Faarfbladungsmaschinn. Et ass speziell fir Duebel-Schicht an duebel-faarf 60L Blading Maschinnapplikatiounen, sou wéi Toolboxbladelen / 60sl Pantälen.

Volume: 60LGewiicht: 15t

Schécken Ufro

Produkt beschreiwung Specification Application

KGB90AP 60L Akkumulatorblo Dashd Maschinn huet Duebel Extrusiounssystem kann duebel Schicht passen oder duebel Faarfproduktioun Ufuerderunge fir ze verlängeren Produkt Rang.
Ëmfaasst e Moog 100 Dicke Controller, Roboterarm, an ënnen blosen System, verhënnert Produktivitéit a Produktqualitéit. Dës villsäiteg Maschinn ass ideal fir verschidde Applikatiounen, inklusiv aus Chemeschen Drum Bladder Maschinn Léisungen, Plastikträghausblacken Maschinn Maschinn Prozesser,.

D'Features a Virdeeler

Dëse Modell ass eng fix Schold Ouverture an zouenen Typ, andeems en duebel Tie Staang benotzt Synchronous Meldglossmechanismus, an den Uelegzylinder direkt Drock klemmt
Späicherzylinder stierwen Kapp Serie
Maximum Volumen 60l
Gëeegent FuttoBox, etc.
Benotzt eenzegaarteg Technologie, Schimmel Clomping Pressoriséierungssystem, grouss Spannung Kraaft, schnell Schimmel Klaminggeschwindegkeet, kuerz Produktzyklus

Specifications

serial number	Material PE、PP、ABS ...	Mold closing oil cylinder(single cylinder)
serial number	Material PE、PP、ABS ...	Machine model:KGB90AP
Specifications
1	Max container capacity	60 L
2	Output(dry Cycle)	500 PC/HR

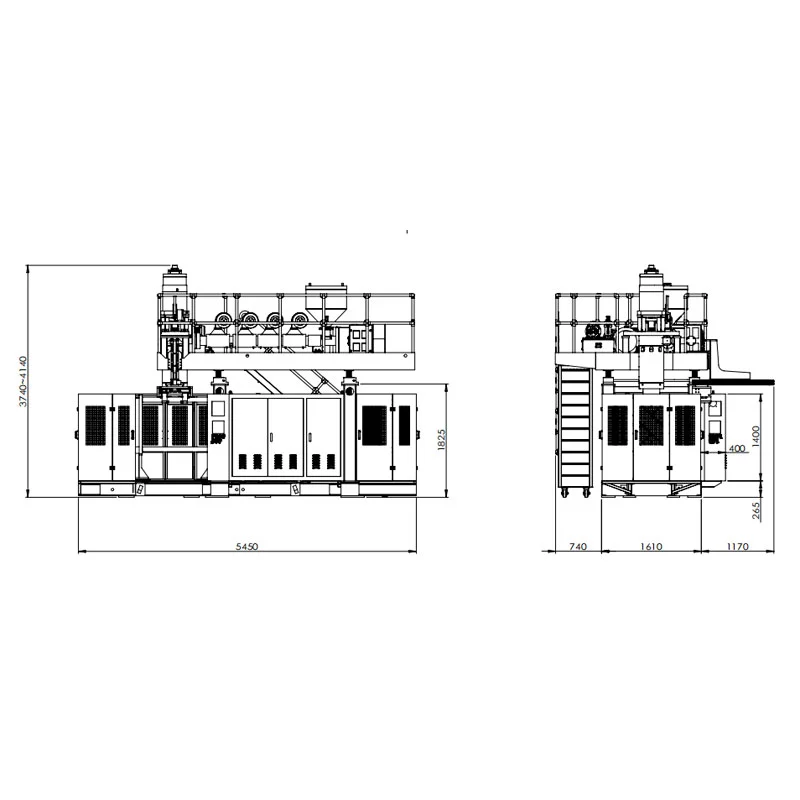

3	Machine Dimension(L×W×H)	5.45 M x 3.5 M x 4.2 M
4	Machine weight	15T
Clamping Unit
1	Clamping force	280 KN
2	Mold platen size(W×H)	960 MM x 980 MM
3	Platen openingstroke	450 MM -1050 MM
4	Platen moving stroke	500 MM
5	Max mold size(W×H)	700 MM×980 MM
6	Mold thickness	460 MM -550 MM
Power
1	Servooil pump motor power	18.5 KW
2	Servo pump displacement	150 L/MIN
3	Blowpressure	0.8 Mpa
4	Air consumption	1 M²/MIN
5	Cooling water pressure	0.3 Mpa
6	Water consumption	90 L/min
7	Average energy consumption	35 KW - 45 KW
Extruder unit
1	Screw diameter	2*70 MM
2	Screw L/D ratio	24 L/D
3	Melting capacit for HDPE	130 Kg/hr - 160 Kg/hr
4	Number of heating zone	4 ZONE
5	Screw heating power	17.6 KW
6	Screw fanpower	0.5 KW
7	Extruder motor power	2*22 KW
Die head
1	Number of heating sections	5 ZONE
2	Heating power	26.8 KW
3	Maxdie-pin diameter	320 MM
4	Accumulator capacity	6.6 L
5	(PE)Accumulator weight	4.95 KG
